S.CF ALLROUND 20-45

S.CF ALLROUND 20-45

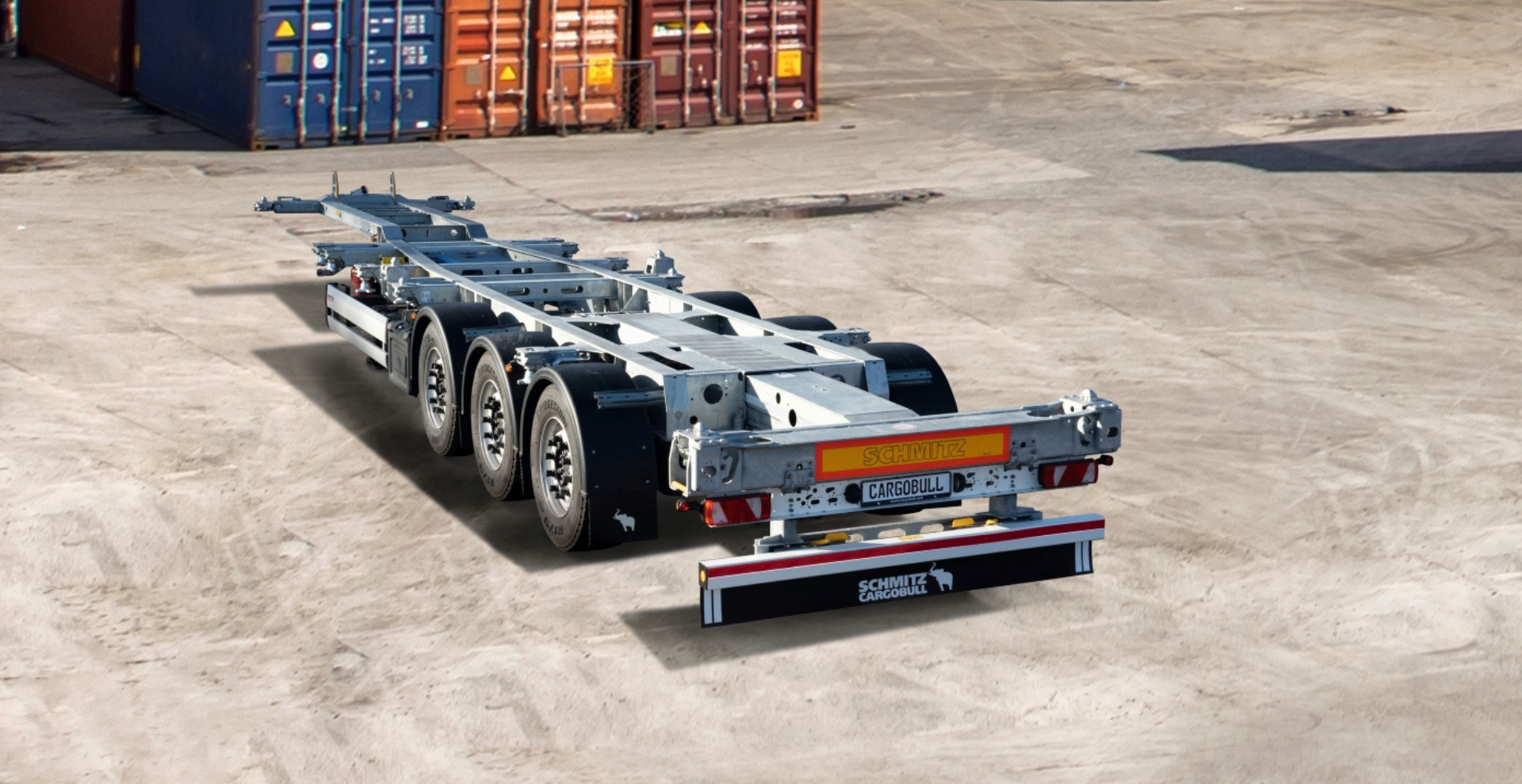

The S.CF ALLROUND 20-45 semi-trailer container chassis delivers flexibility, safety and efficiency.

Adjustable rear

NEW: Flat rear

  • Flexibel: voorbereid voor containers van 20' tot 45' met en zonder tunnel
    Lees meer
  • Flexibel: voorbereid voor containers van 20' tot 45' met en zonder tunnel
    Lees meer
  • Flexibel: voorbereid voor containers van 20' tot 45' met en zonder tunnel
    Lees meer
  • Optioneel: vergrendelingen voor 40'en 45' containers zonder tunnel
    Lees meer
  • Goed doordacht: 130 mm framehalshoogte voor maximaal 4.000 mm totale hoogte
    Lees meer
  • Handig: pneumatisch achterste uitschuifgedeelte, mechanisch voorste uitschuifgedeelte
    Lees meer
  • Zeewaardig: 2 paar ferryogen
    Lees meer
  • Zeewaardig: 2 paar ferryogen
    Lees meer

Your benefits

  • Versatile use

    Front and rear extension mechanisms allow easy adaptation to different container sizes from 20’ to 45’

    Lees meer
  • Secure locking

    The height-adjustable KLAPP LOCK locks the front container when loading 2 x 20’ containers.

    Lees meer
  • Easy handling

    Mechanical front extension, pneumatic rear extension and intuitive user guidance ensure efficient operation in day-to-day use.

    Lees meer
  • Seaworthy

    2 pairs of ferry lashings

    Lees meer

Uitrustingskenmerken

  • Chassis
  • Onderstel
  • Vergrendelingen
  • Others
Chassis
Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

General

Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.
Meer weten
The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

Front beam can be overloaded at the front for transporting 45' containers.
Meer weten
The rear extension can be pneumatically extended to the required container position.

Achterste uitschuifgedeelte

De achterste uitschuifeenheid kan pneumatisch naar de gewenste containerpositie worden uitgeschoven.
Meer weten
S.CF container support

Containersteunen

Optioneel: Drie paar inklapbare containersteunen voor 40'/45' containers zonder tunnel.
Meer weten
S.CF container guide

Containergeleiders

Met haak beveiligde containergeleider om tunnelcontainers veilig te kunnen opzetten.
Meer weten
All the required equipment is stored in the tool box.

Gereedschapskoffer

Alle benodigde gereedschap en hulpmiddelen worden veilig en schoon opgeborgen in de optionele, stevige gereedschapskoffer.
Meer weten
The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Ferry Lashings

Voor het gebruik in het ferry-vervoer kan het containerchassis met ferrylashings worden uitgerust.
Meer weten


The new in-house developed underride guard for better handling

Mechanical front extension for 45‘ containers is spring-mounted on rollers and is easy and safe to handle.
Body
Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.
Meer weten

Automatic axle lift

The optional lift axle as a starting aid extends the  wheelbase and thus increases the pressure on  the drive axle. Unloaded in the lifted position, tire  wear is reduced.
Meer weten
Vergrendelingen
Meer weten
Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKs

De STEP LOCK's op de achterste verlenging passen het containerchassis in twee eenvoudige stappen aan op containers met en zonder tunnel. De vergrendelhoogte kan eenvoudig worden gewijzigd.
Meer weten
Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Bij het laden met 2x 20' containers nemen twee KLAPP LOCK's de achterste vergrendeling van de voorste container op zich: Omhoog klappen, de veiligheidshaken laten vergrendelen en de container kan worden opgezet.
Meer weten

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.
Meer weten
Others

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.
Meer weten

Simple explanations via QR code

QR codes with operating videos support handling. Positioned clearly visible and easily accessible. Scan the QR code and get quick help for various handling situations.

Brand generator set ex works for supplying power to refrigerated containers

Genset financing offer

Refrigerated containers (20/40/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transport. Schmitz Cargobull offers a complete ex-works solution for the S.CF 45' EURO container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Finance the generator set including CEE socket 32A/3h with Schmitz Cargobull Finance from 263 euros per month and benefit from numerous advantages.

  • Brief Information: Transport solution for refrigerated containers
    Download

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.
Meer weten

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.
Meer weten

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.
Meer weten

Your advantages

  • One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
  • Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
  • High ground clearance of approx. 310 mm
  • Self-sufficient power supply for up to 60 hours from remote units
  • Branded product with large service network
  • Immediately available from stock

Onze dienstverlening

Service Contracts

With the right service contract, you retain full control over the costs and we make sure that you stay mobile!
Meer over:Service Contracts

Telematic

TrailerConnect® telematics provides you with all the information you need about your vehicles.
Meer over:Telematic

Financing

We will provide you with a customized offer with attractive conditions for the entire life cycle of your investment.
Meer over:Financing

Media

  • Brief Information Container Chassis S.CF ALLROUND 20-45
    Download
