S.CF ALLROUND 20-45

S.CF ALLROUND 20-45

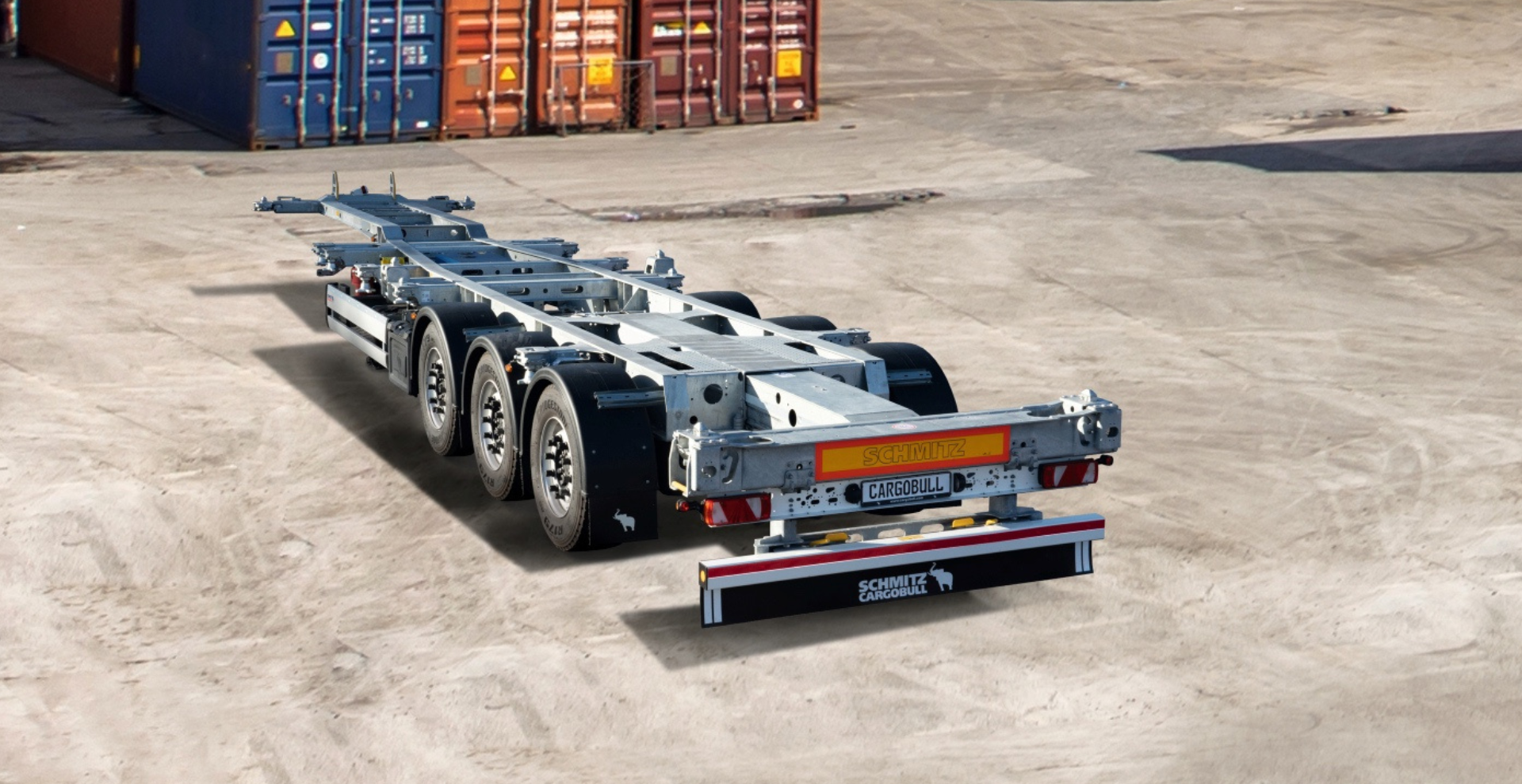

The S.CF ALLROUND 20-45 semi-trailer container chassis delivers flexibility, safety and efficiency.

Adjustable rear

NEW: Flat rear

  • Flexibel: förberedd för container från 20' till 45' med och utan tunnel
    Läs mer
  • Flexibel: förberedd för container från 20' till 45' med och utan tunnel
    Läs mer
  • Flexibel: förberedd för container från 20' till 45' med och utan tunnel
    Läs mer
  • Tillval: Lås för 40'och 45' container utan tunnel
    Läs mer
  • Genomtänkt: 130 mm ramhalsens höjd för max. 4000 mm totalhöjd
    Läs mer
  • Praktiskt: pneumatiskt manövrerad bakre förlängning, mekanisk frontförlängning
    Läs mer
  • Säker vid sjötransporter: 2 par färjeöglor
    Läs mer
  • Säker vid sjötransporter: 2 par färjeöglor
    Läs mer

Your benefits

  • Versatile use

    Front and rear extension mechanisms allow easy adaptation to different container sizes from 20’ to 45’

    Läs mer
  • Secure locking

    The height-adjustable KLAPP LOCK locks the front container when loading 2 x 20’ containers.

    Läs mer
  • Easy handling

    Mechanical front extension, pneumatic rear extension and intuitive user guidance ensure efficient operation in day-to-day use.

    Läs mer
  • Seaworthy

    2 pairs of ferry lashings

    Läs mer

Utrustning

  • Chassi
  • Chassi
  • Lås
  • Others
Chassis
Schmitz Cargobull container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Allmänt

Schmitz Cargobull containerchassin tillverkas av höghållfasta stålprofiler och skyddas systematiskt mot korrosion.
Få reda på mer
The Schmitz Cargobull spring-mounted, roller-borne front extension.

Front extension

Front beam can be overloaded at the front for transporting 45' containers.
Få reda på mer
The rear extension can be pneumatically extended to the required container position.

Bakutmatning:

Bakutmatningen körs ut pneumatiskt till det valda containerläget.
Få reda på mer
S.CF container support

Containerfästen

Tillval: Tre par fällbara containerfästen för 40'-/45'-container utan tunnel.
Få reda på mer
S.CF container guide

Containerstyrning

Krokskyddad containerstyrning gör det enklar att sätta på tunnelcontainer.
Få reda på mer
All the required equipment is stored in the tool box.

Verktygslåda

Du förvarar alla nödvändiga hjälpmedel säkert och hygieniskt i den stabila verktygslådan som finns som tillval.
Få reda på mer
The semi-trailer container chassis can be equipped with ferry lashings for ferry transport.

Färjeöglor

För användning vid färjetransporter kan containerchassit utrustas med färjeöglor.
Få reda på mer


The new in-house developed underride guard for better handling

Mechanical front extension for 45‘ containers is spring-mounted on rollers and is easy and safe to handle.
Body
Outstanding driving characteristics, thanks to standard Multi-Ride-Height air suspension

ROTOS? running gear

Outstanding driving characteristics, thanks to MRH (Multi-Ride-Height) air suspension. Ideally matched components ensure reliable brake performance even in continuous operation.
Få reda på mer

Automatic axle lift

The optional lift axle as a starting aid extends the  wheelbase and thus increases the pressure on  the drive axle. Unloaded in the lifted position, tire  wear is reduced.
Få reda på mer
Lås
Få reda på mer
Your semi-trailer container chassis fits to the container in a matter of moments.

STEP LOCKs

STEP LOCKs på bakutmatningen anpassar containerchassit till container med och utan tunnel med två handgrepp. Möjligt att växla låshöjd på ett enkelt sätt.
Få reda på mer
Fold up, let the safety hooks engage and mount the container.

KLAPP LOCKs

Vid lastning med 2x 20'-container ombesörjer två KLAPP LOCKs den bakre låsningen på den främre containern: Fäll upp, lås säkringskroken hakas fast och containern kan sättas på plats.
Få reda på mer

MULTI LOCKs

The MULTI LOCK locking mechanism on the mechanical front extension to accommodate 45' Euro containers for total versatility.
Få reda på mer
Others

New operating concept

New operating concept with loading plan and clear function and warning notices on locks and extensions.
Få reda på mer

Simple explanations via QR code

QR codes with operating videos support handling. Positioned clearly visible and easily accessible. Scan the QR code and get quick help for various handling situations.

Brand generator set ex works for supplying power to refrigerated containers

Genset financing offer

Refrigerated containers (20/40/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transport. Schmitz Cargobull offers a complete ex-works solution for the S.CF 45' EURO container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.

Finance the generator set including CEE socket 32A/3h with Schmitz Cargobull Finance from 263 euros per month and benefit from numerous advantages.

  • Brief Information: Transport solution for refrigerated containers
    Download

Control panel

The control panel with TFT monitor shows the operating status, consumption, total running time and the next maintenance date, among other things.
Få reda på mer

CEE socket

Easy handling: power supply to the refrigerated containers via the CEE socket on the front bar.
Få reda på mer

Diesel tank

130 litre diesel tank for continuous operation of refrigerated containers for several days.
Få reda på mer

Your advantages

  • One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
  • Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
  • High ground clearance of approx. 310 mm
  • Self-sufficient power supply for up to 60 hours from remote units
  • Branded product with large service network
  • Immediately available from stock
